Description
| APPLICATIONS
Water supply & dewatering Fire safety HVAC Booster Circulating & cooling water Irrigation Industry
|
SPECIFICATIONS
Capacity: 5~1800m³/h(22~7900usgpm) Head: 5~125m(16~410ft) Speed: 2900rpm & 1450rpm (Operating under 60Hz is subject to our calculation) Working Pressure: 16 bar Temperature: -10°C ~ 115°C Suction: DN50~350 Discharge: DN32~300 |
DESIGNATION

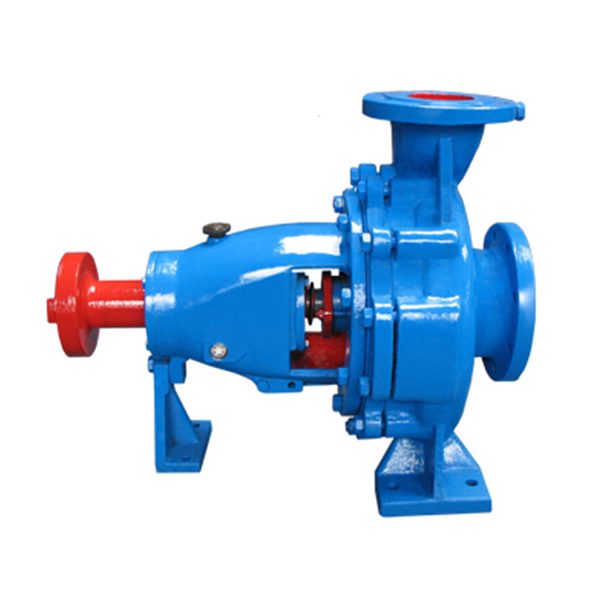

IS100x65-250: IS is series code Inlet is DN100 Outlet is DN65 Imp dia is 250mm
|
